产品详情介绍
Soft-Start
Under-Voltage Detection
Over-Voltage Detection
Adjustable Current Limit
Wider Duty Cycle (to 78%)
130 KHz or 65 KHz Selectable Frequency
Frequency Jitter
Remote On/Off
Cellular phone charger
PC standby power supply
Set top box
DVD
LCD Monitor
Multimedia speakers
| Output Power (Watts) | ||||
|---|---|---|---|---|
| PRODUCT1 | 230 VAC | 85-265 VAC | ||
| Adapter | Open Frame | Adapter | Open Frame | |
| TOP232PN TOP232GN | 9 | 15 | 6.5 | 10 |
| TOP232YN | 10 | 25 | 7 | 15 |
| TOP233PN TOP233GN | 13 | 25 | 9 | 15 |
| TOP233YN | 20 | 50 | 15 | 30 |
| TOP234PN TOP234GN | 16 | 30 | 11 | 20 |
| TOP234YN | 30 | 75 | 20 | 45 |
Notes:

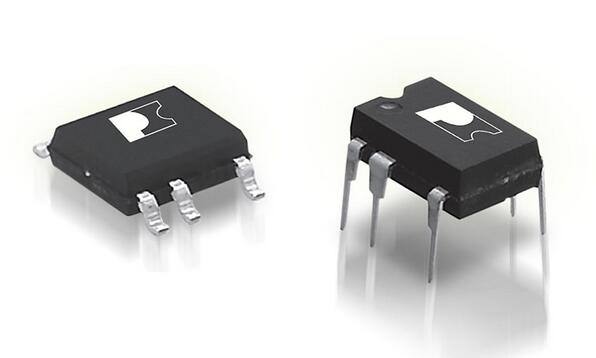

Packages; P: DIP-8, G: SMD-8.
