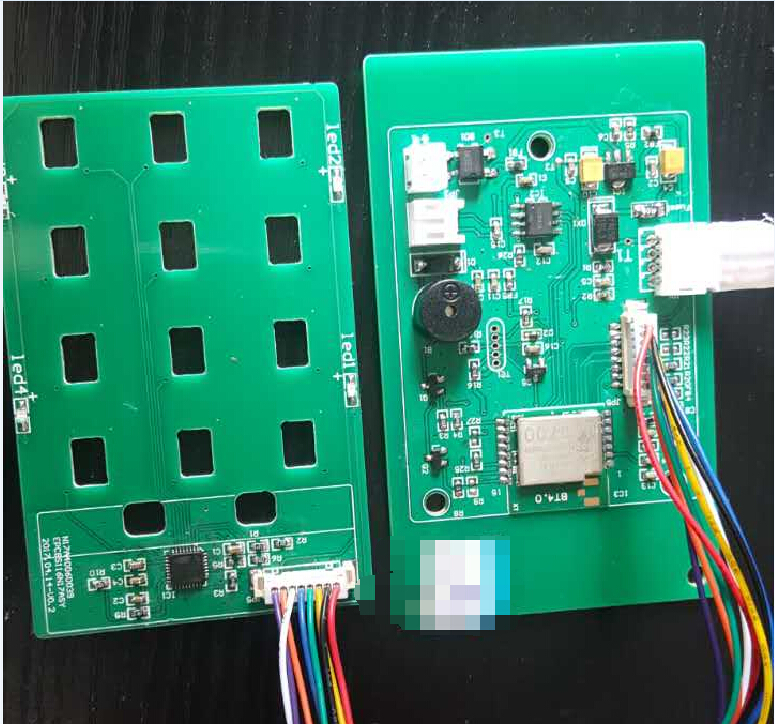

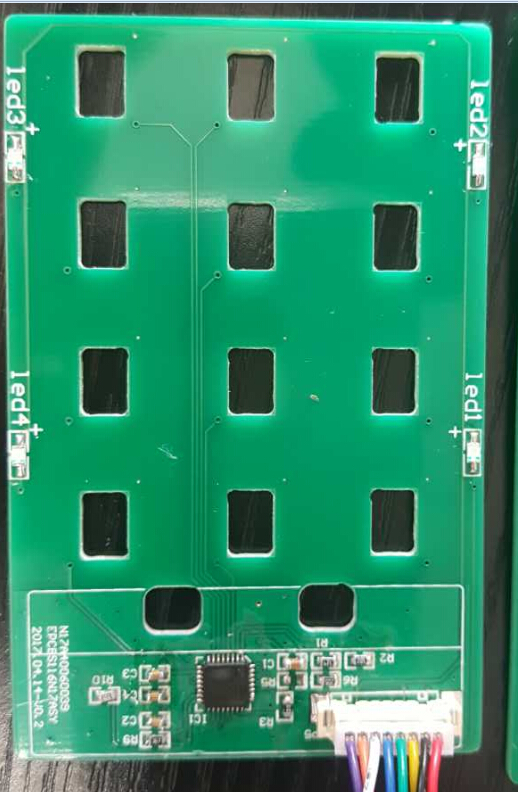

智能电子锁触控解决方案-TSM12MC触摸芯片

TSM12触摸电子锁专用触摸芯片

TSM12低功耗触摸芯片

General
The TSM12 is 12-Channel capacitive sensor with auto sensitivity calibration. And the supply voltage range is from 1.8 to 5.0V.
The TSM12 has the IDLE mode to save the consumption. And the current consumption is 10 uA.
The TSM12 offers special functions. One is an embedded power key function on channel 1 for mobile phone application. The other is the sync function for multi chip application.
The result of touch sensing can be checked by the I2C serial interface. And touch intensity can be detectable within 3 steps (Low, Middle and High).

Feature
 12-Channel capacitive sensor with auto sensitivity calibration
 Selectable output operation (single mode / multi-mode)
 Independently adjustable in 8 step sensitivity
 Adjustable internal frequency with external resister
 Adjustable response time and interrupt level by the control registers
 I2C serial interface
 Embedded high frequency noise elimination circuit
 Typical current consumption xxx 60 uA (@3.0V)
 Sleep mode current consumption 10 uA (@3.0V)
 RoHS compliant 32MLF package
